THE ULTIMATE EFFECTS ROUTING EXPERIENCE

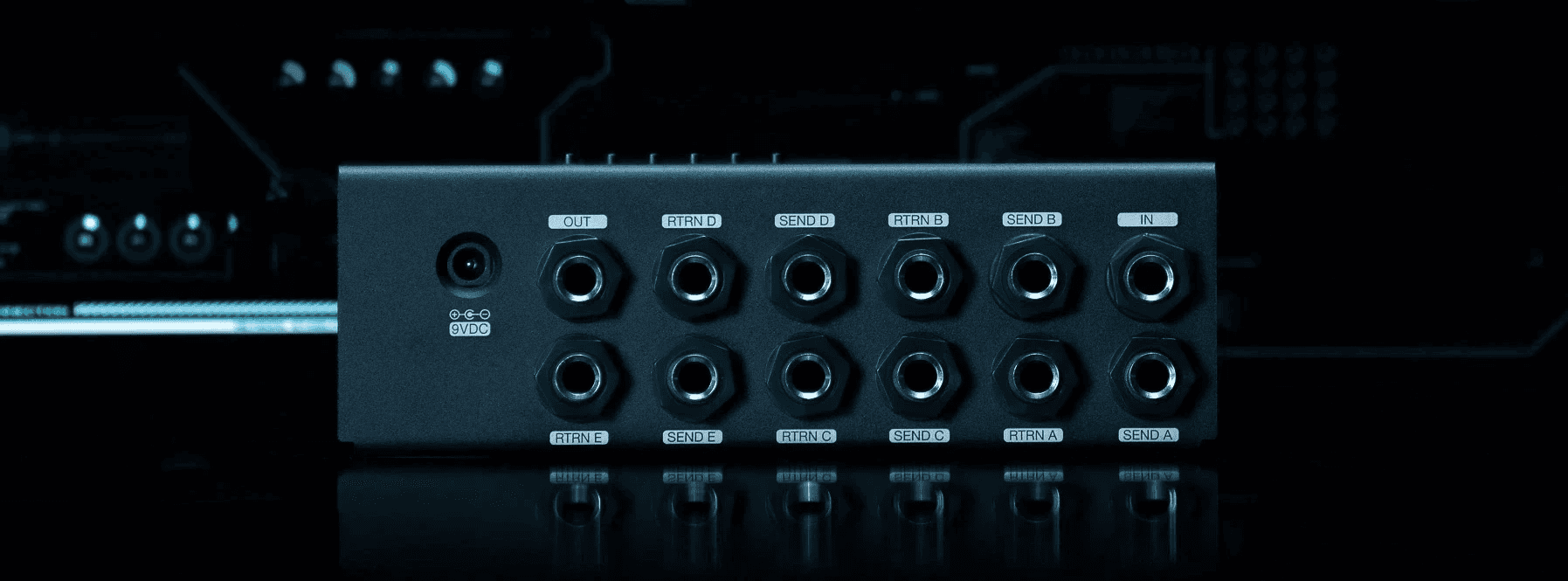

With 5 stereo loops that can each be split into 2 mono loops, the ML10X gives you a total
of up to 10 loops, each independently controllable and reorderable.
​
You can use the ML10X in mono or stereo, making it the perfect solution
for whatever setup you run.
​
THE FREEDOM TO REORDER
The order in which you chain your effects can make immense or subtle differences to your resultant
tone. The ability to reorder your effects on-the-fly expands your sonic palette
with the same effects you already own.
​
It's like having a set of colored paint. But now you are free to mix them however you like.
​
​
INTUITIVE ONBOARD CONTROLS
The ML10X user interface was developed for ease of use and to clearly display
important information to the user.
​
Apart from allowing you to access and edit presets and settings, the LCD screen also shows you
which bank you are in and the currently active preset name and number.
​
​
​
​
4 banks 512 presets
ML10X EDITOR
For greater speed and clarity, the ML10X Editor lets you access global settings, edit your presets and
reorder your effects with a drag-and-drop user interface.​
​
​
​
NAME YOUR LOOPS
It's important to know what pedal each loop contains.
And now, you no longer need to make the effort to remember.
​
With custom names for each loop, you will always select the right effect for the job.
​
​
SIMPLE MODE: CONNECT IN SERIES
In Simple mode, drag and drop your desired effects onto the signal chain to add them to a preset. Also
drag and drop to rearrange their order. To engage or bypass a loop, simply click on it.
​
ADVANCED MODE: SPLIT AND MERGE
Advanced mode, gives you the freedom to split and merge your signal chain as you please.​
Complex routings in series and parallel are made possible, with the only limitation being your imagination.
​
​
NATIVE INTEGRATION WITH
MORNINGSTAR CONTROLLERS
​
If you own a Morningstar MIDI controller, you won't need to deal with MIDI at all.
​
With the 'Morningstar ML10X' message type you will be able to engage/bypass selected loops,
scroll through presets and recall any preset of your choice.
​
​
​
SPILLOVER TRAILS
With spillover capability, the ML10X lets you seamlessly change presets and bypass loops without an abrupt
cut in sound. This is especially useful for delay and reverb effects that trail on.
Spillover trails can be applied to one or multiple loops, definable per preset.
​
​
SPLITTING A STEREO LOOP
Split each stereo TRS loop into 2 loops with split-Y cables and plugs.
​
Each of the split loops can function as independent mono loops,
or left and right channels of a stereo pedal.
​
Using a split cable will also allow you to use the ML10X's TRS audio input and output in stereo.
​
Splitter solutions sold separately here.
​
​
​
MIDI I/Os
​
The ML10X has 5-pin MIDI IN and THRU ports so you
can easily daisy chain it with other MIDI-capable devices.
You can also link multiple ML10Xs for more loops.
​
​
​
USB CONNECTIVITY
USB-C connection to your computer for firmware updates, backups and use with the ML10X Editor
​
​
COMPATIBLE WITH ANY MIDI CONTROLLER
While Morningstar controllers offer native integration with the ML10X, the ML10X has
standard and comprehensive MIDI implementation.
This means that it can also be used with any MIDI controller that can send PC and CC
messages. See the MIDI Implementation Chart.
​
​
More information available in the Morningstar ML10X Manual
​
​
​
TECHNICAL SPECIFICATIONS
Enclosure Dimensions
169 x 58 x 58 mm
​
Weight
0.45kg
​
Power Requirements
9-18V DC center negative (min 160mA)
​
Hardware
Sand blasted aluminium enclosure
6x tactile switches
Black LCD display
​
I/Os
1 x 5-pin MIDI In
1 x 5-pin MIDI Thru
USB Type C
1x Stereo TRS Input
5x Stereo TRS Send
5x Stereo TRS Return
1x Stereo TRS Output
​
Memory
4 banks of 128 presets each
​
Other
Max I/O level:
-
4V peak to peak (with 9v power supply)
-
10V peak to peak (with 18v power supply)
Input/Return Impedance: 1M ohm
Output/Send Impedance: Approx 100 ohm
​
More information in the ML10X Manual
​
​
